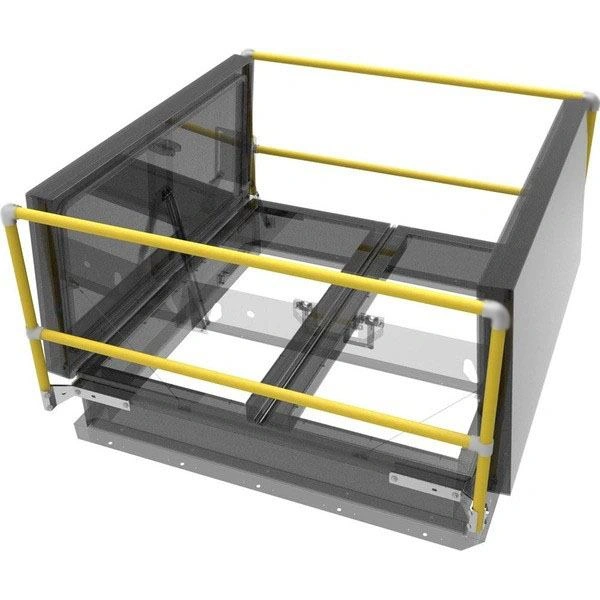

Two-Sided Smoke Vent Safety Railing
The Nystrom OSHA compliant Safety Railing is ideal for new and retrofit applications. The safety railing mounts to the existing smoke vent curb counterflash without penetrating the membrane.
- OSHA Compliant Fall Protection
- Optional Four-Sided Rails
- Easy Field Installation
|Material||Rails and Posts, aluminum, 1-1/4 inch ID (1.66 inch OD) Schedule 40 pipe A53 Grade B|
|Finish||Safety Yellow Powder Coat|
|Fittings||Cast aluminum alloy with set screw hold|
|Mounting Brackets||3/16 inch steel, zinc plated with a patented nut backing plate|
|Hardware||Hex head bolts 3/8 inch - 16 x 3/4 inch zinc plated steel|
|Compliance||OSHA 29 CFR 1910.28 and 1910.29 requirements for fall protection; supports 200lbs force|
|Warranty||Five (5) years|
|Sizes||Industry standard and custom sizes available|
Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.
|Standard Sizes (in.)
36 x 30
36 x 36
48 x 48
48 x 96
60 x 96
60 x 120
60 x 144
66 x 144
72 x 144
REPLACEMENT PARTSComing soon.
NYSTROM warrants all Safety Railings to be free from manufacturing defects in materials, factory finishes, and workmanship for a period of five (5) years from the date of shipment.
Should a product fail to function in normal use within this period, Nystrom shall furnish a replacement or new part at Nystrom's discretion. Failure to use product in methods consistent with Nystrom product manuals shall relieve Nystrom of any liability. Our liability under this warranty excludes installation or removal costs involved in the product replacement and excludes any responsibility for incidental or consequential damage of any nature.
For information on a warranty claim, please visit our Warranty Support section or call 800 547-2635.
